The Drawings Folder in Drive is used to store all your Projects Drawings. Drawings can be organized into Drawings Sets (Drawings Sub-Folders) and can be associated to specific trades and also support revisions.  .PDF, .DWG, .DGN  file types can be uploaded to the Drawings Folder.

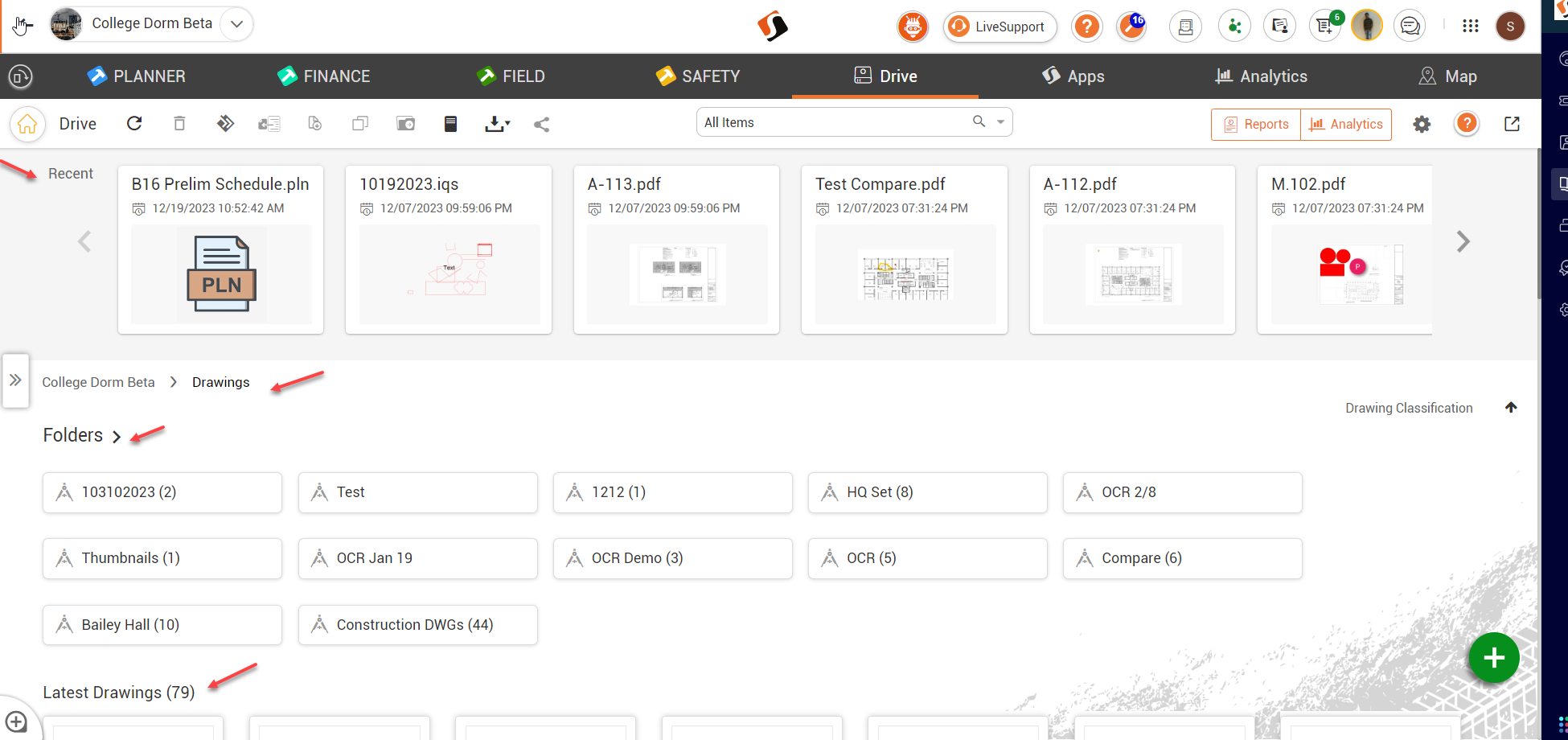

  • The Root Drawings Folder contains the following sections:
  • Recent: Items you have recently opened across Drive
  • Folders: Drawings Sets (Drawings Sub-Folders)
  • Latest Drawings: Shows an aggregate across all your Drawing Sets of the most recently Uploaded Drawings, all in 1 place.



  • The Toolbar Options in the Drawing Folder are as follows:


  • Refresh:  Refreshes the Drawings Folder
  • Delete Selected Item(s): You can Delete Selected Items
  • Open in IQSketch: Opens selected Item(s) in IQSketch
  • Exclude from Drawing Log & Latest Drawings: Excludes the drawing from Logs & Latest Drawings.
  • Download:  Downloads selected Drawings. There is also the option to download as PDF/PDF with Markups.
  • Copy: You can Copy a Selected Item.
  • Move: Move Selected Items to Different Drawing Sets.
  • Drawing Log Report: Shows a Printable View of Changes across Drawing Sets in your Drawings Folder.
  • Download Drawing Set: Download selected Drawing Set as a PDF or Zip file.

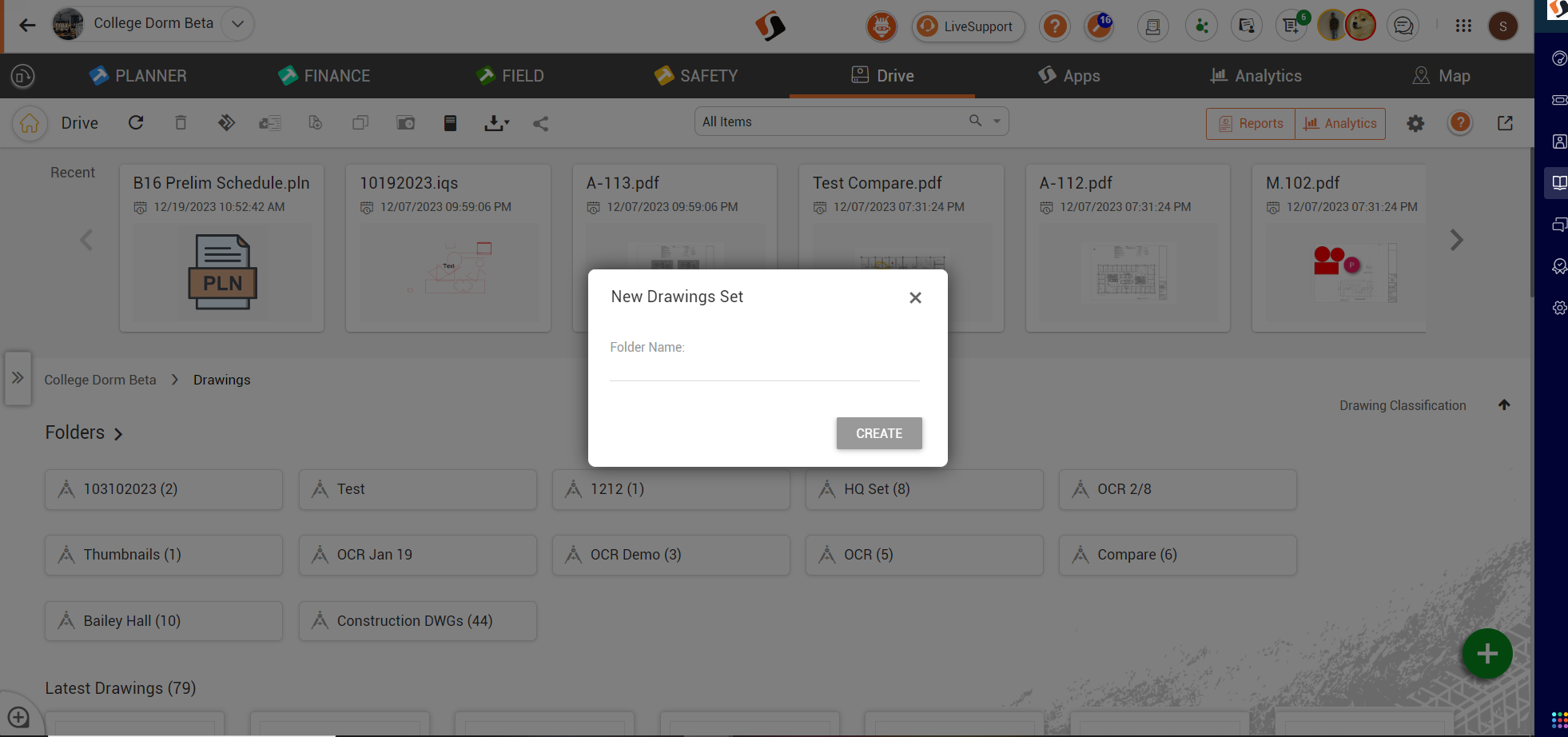

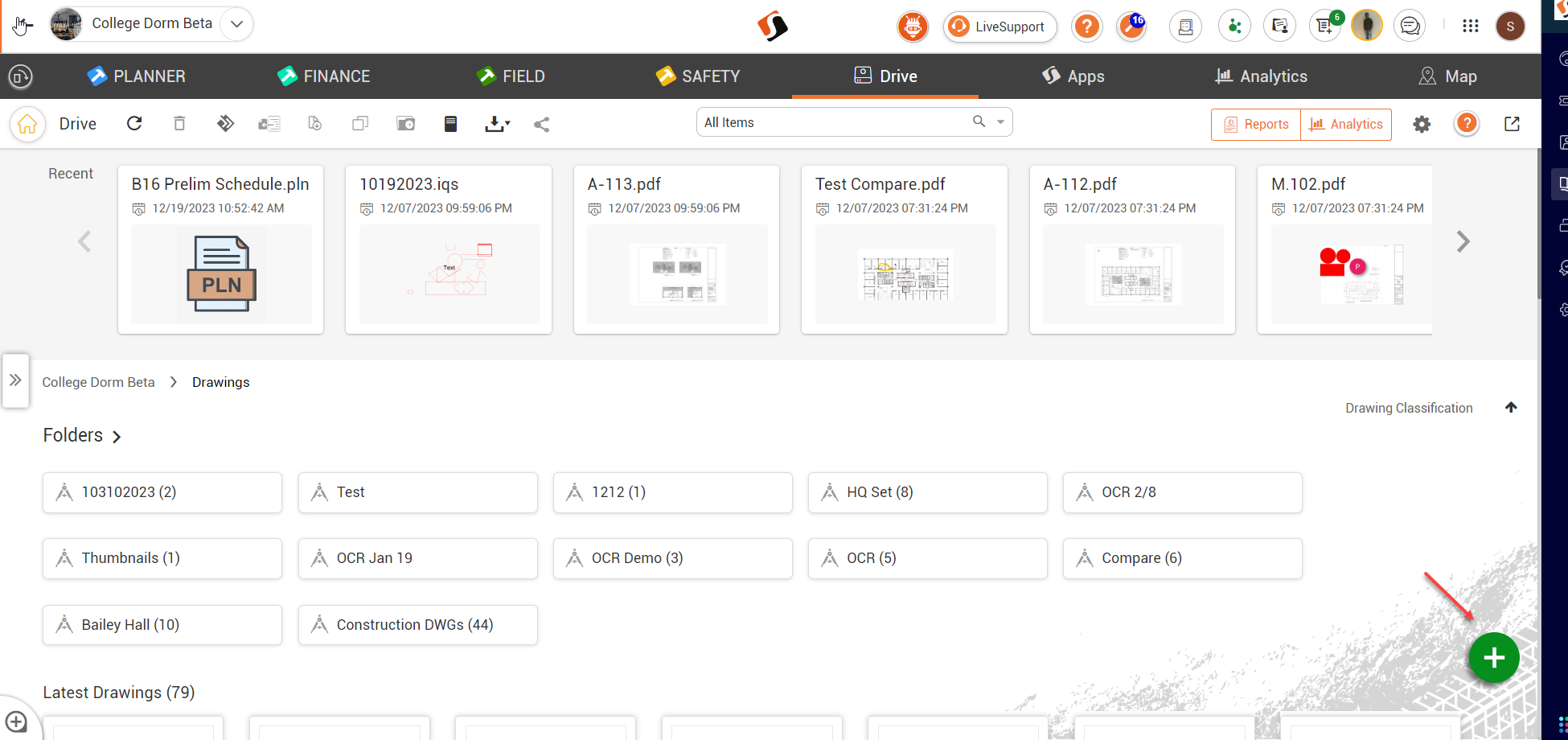

  • Create a New Folder by clicking on the FAB (+) Add button.

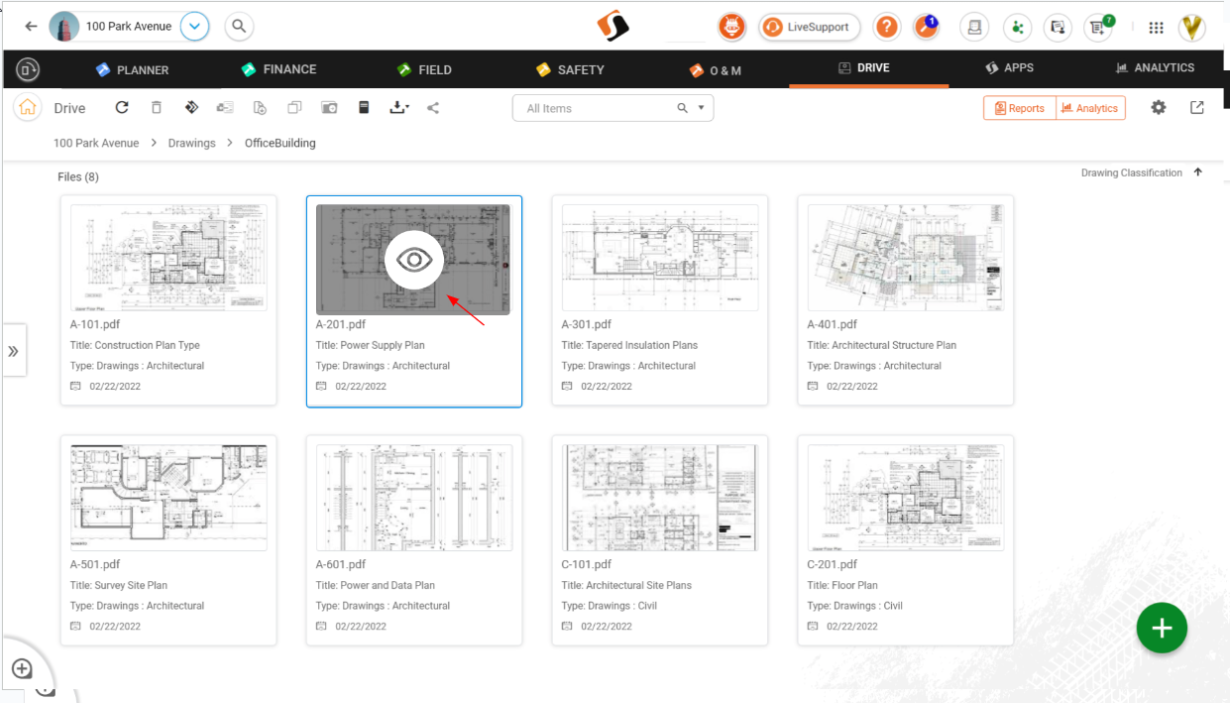

  • The Quick View panel can be opened by selecting and tapping (single click) on a Drawing.

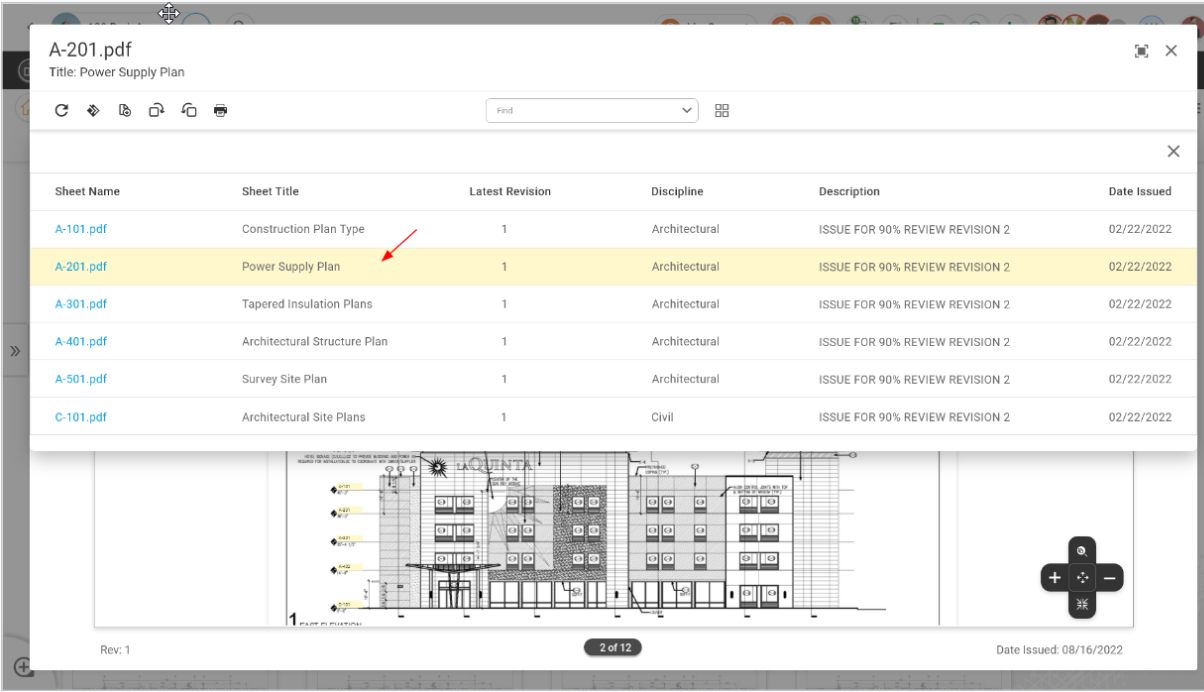

  • Clicking on the "Find" option in the Quick View panel opens the List View that lists all the loaded files within the respective folder with the selected file highlighted.

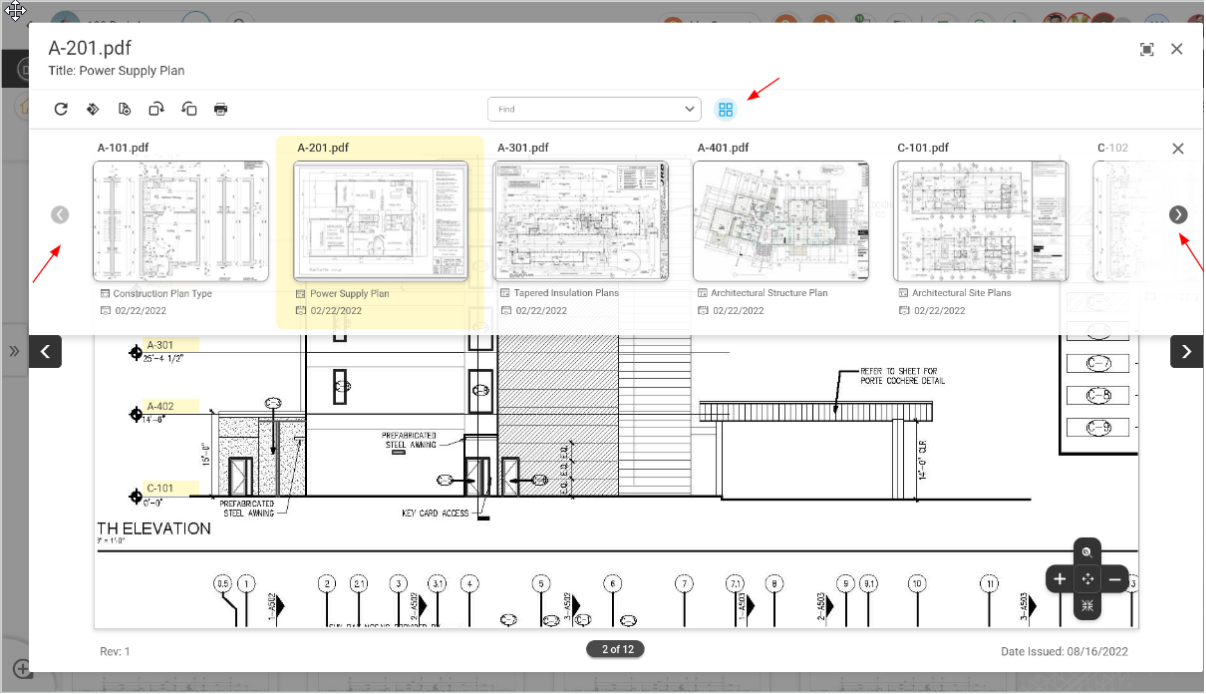

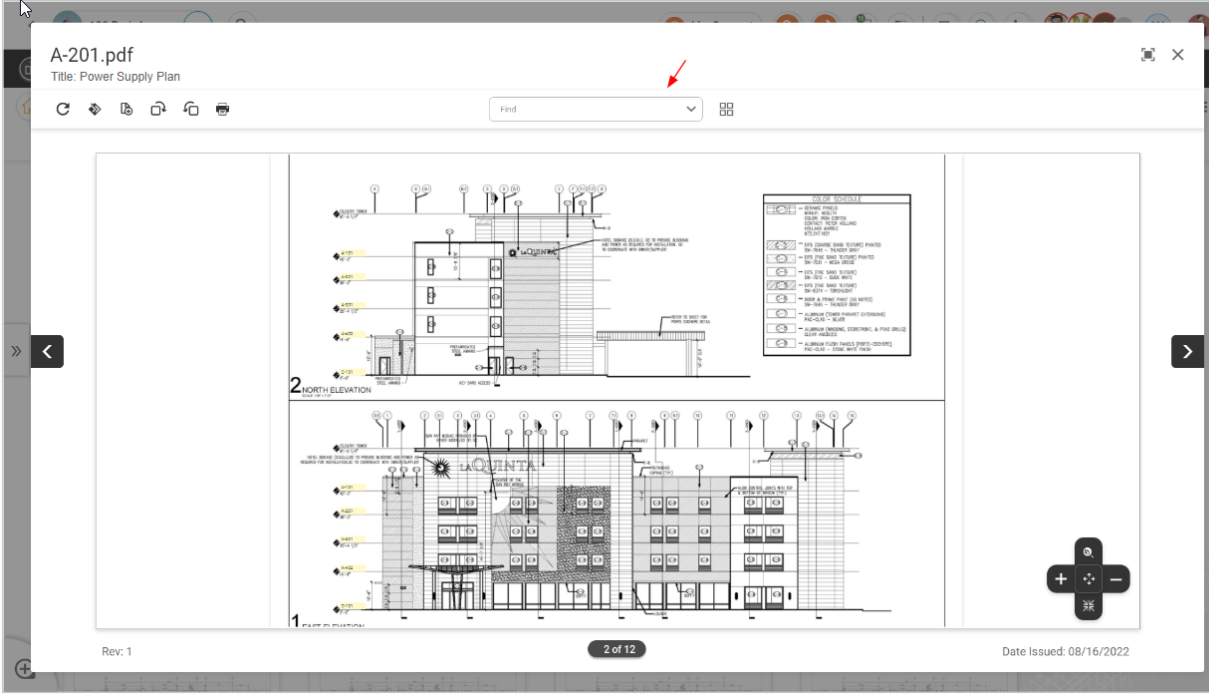

  • The Quick View Panel also hosts a Thumbnail View for better visibility to the users. They can access it through the Thumbnail Strip icon.

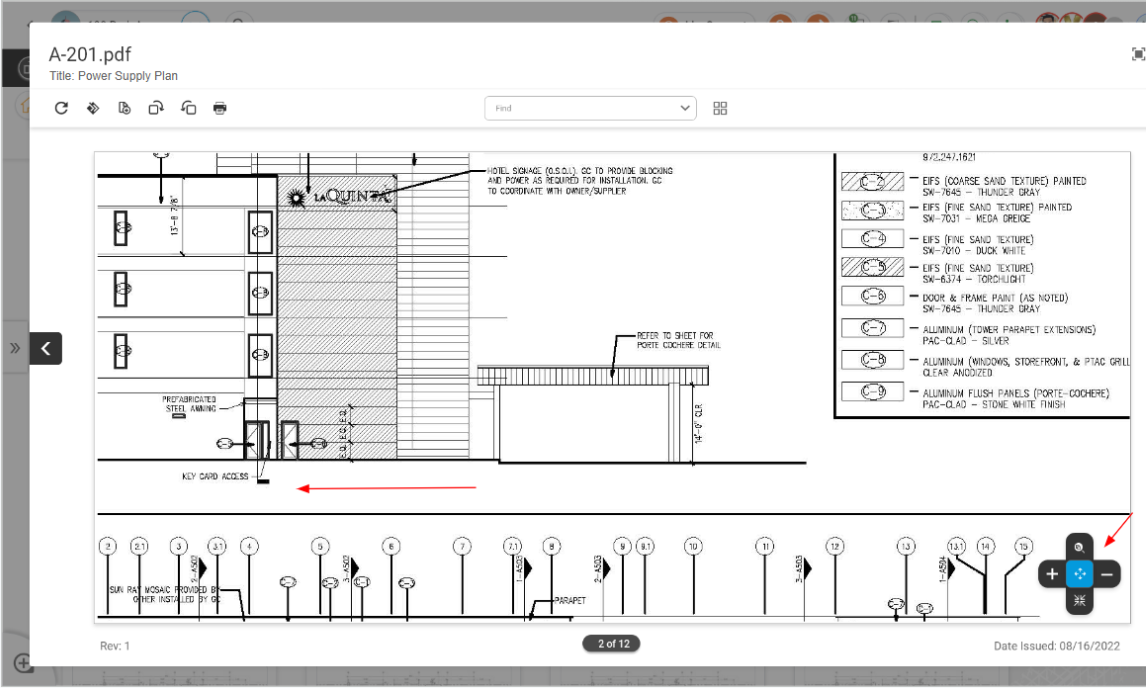

  • The Quick View panel provides some viewing navigation options to users at the bottom right that include:

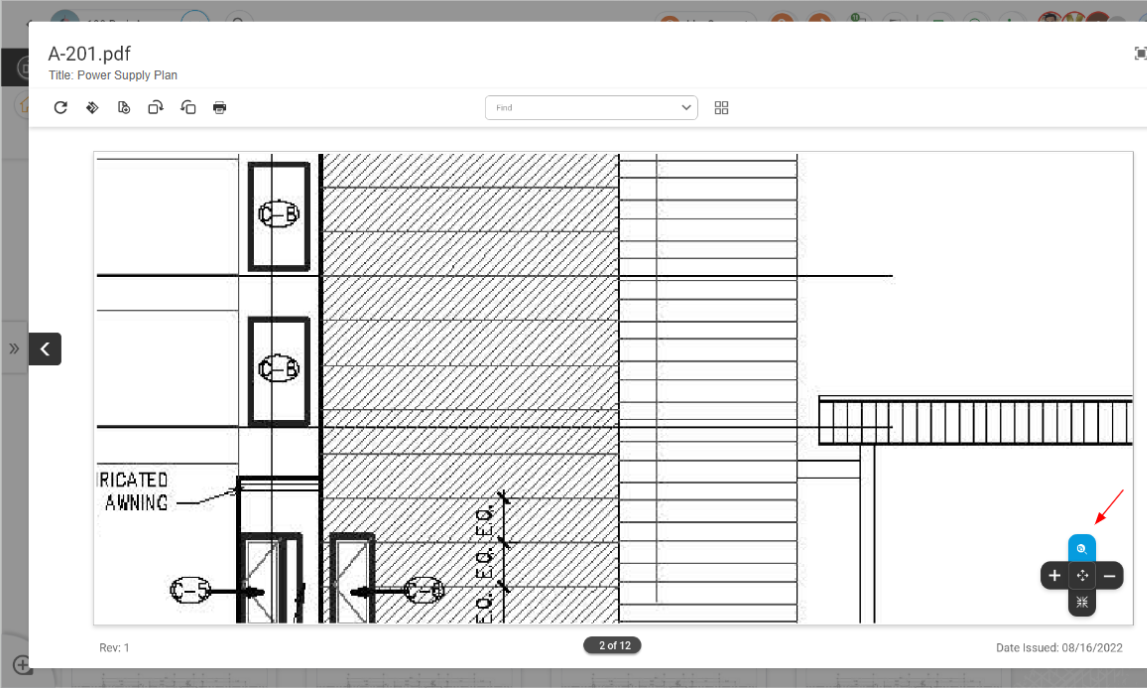

    • Zoom In / Zoom Out: Allows to zoom in and out of the Drawing.

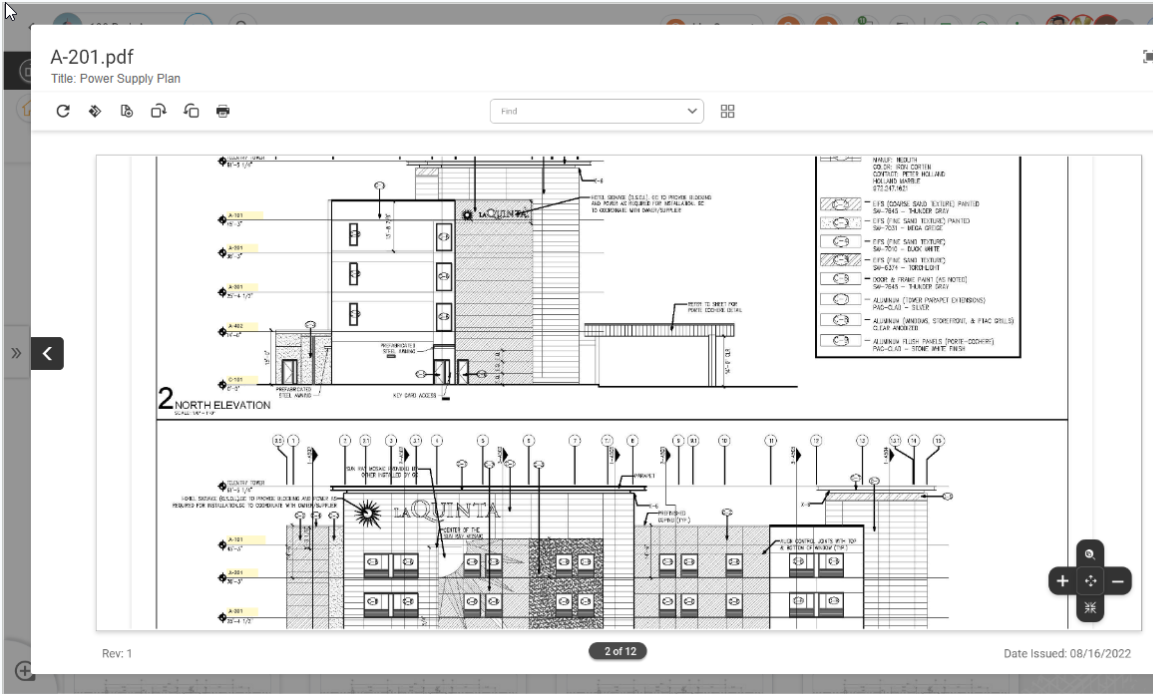

  • Fit to Screen: Drawing fits to screen on click.

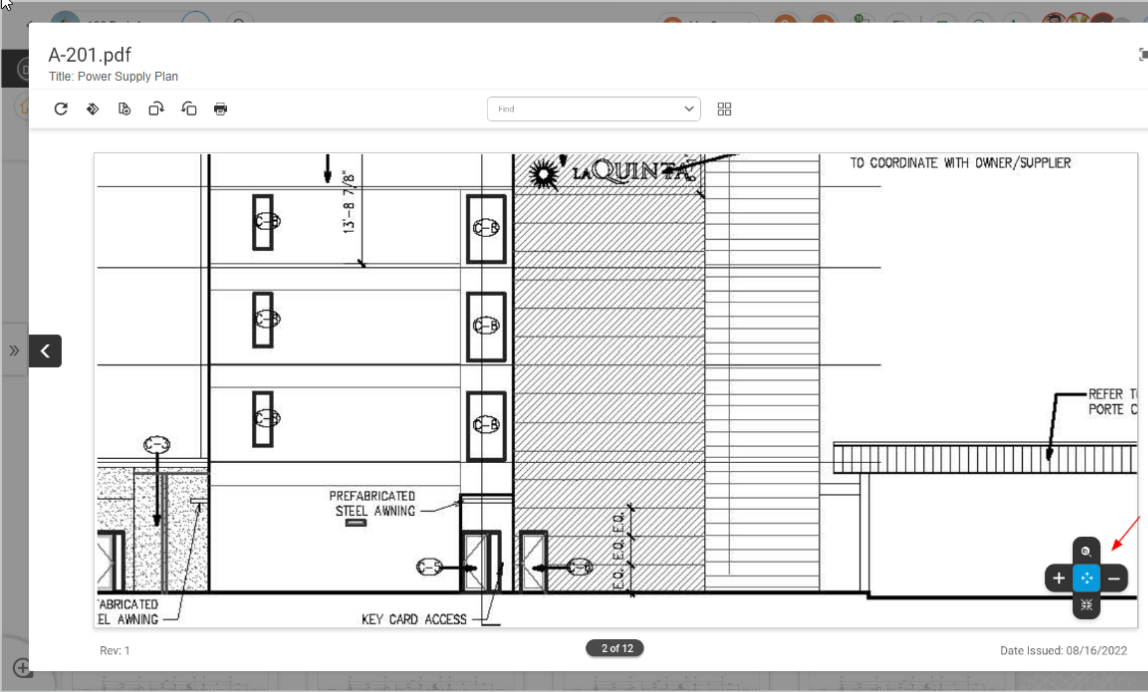

  • Pan: Triggers the Pan Functionality allowing users to move the image

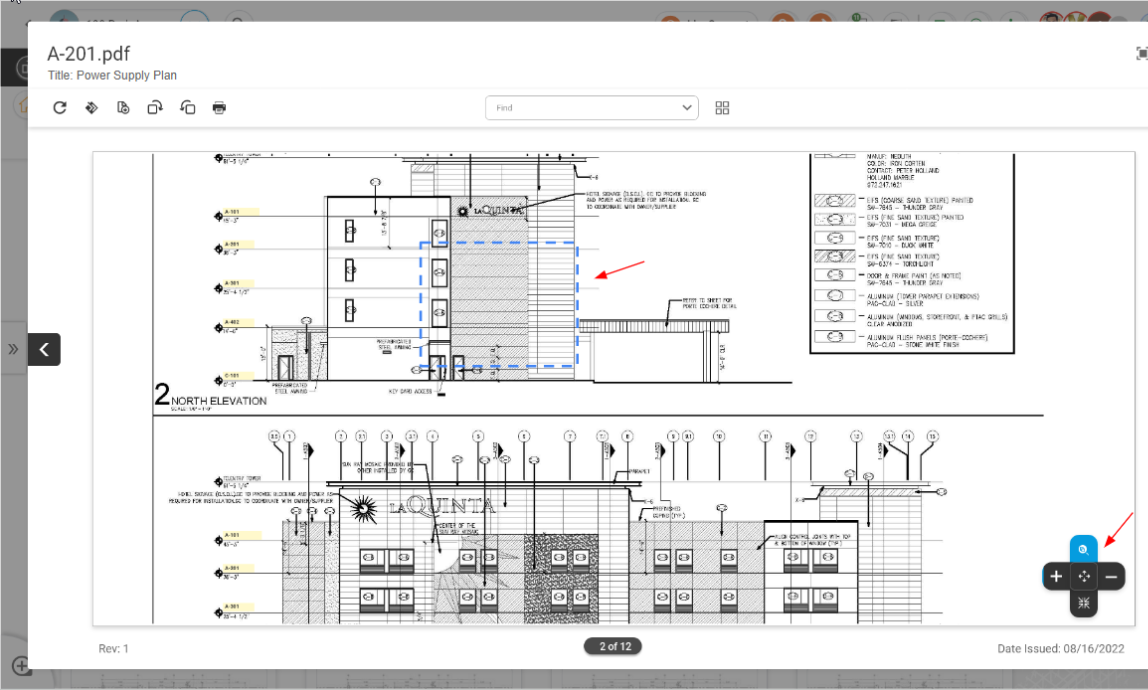

  • Zoom to Selection: Clicking on "Zoom to Selection" Icon in the Control for a specific selected area of the drawing should zoom the selected area on the screen.

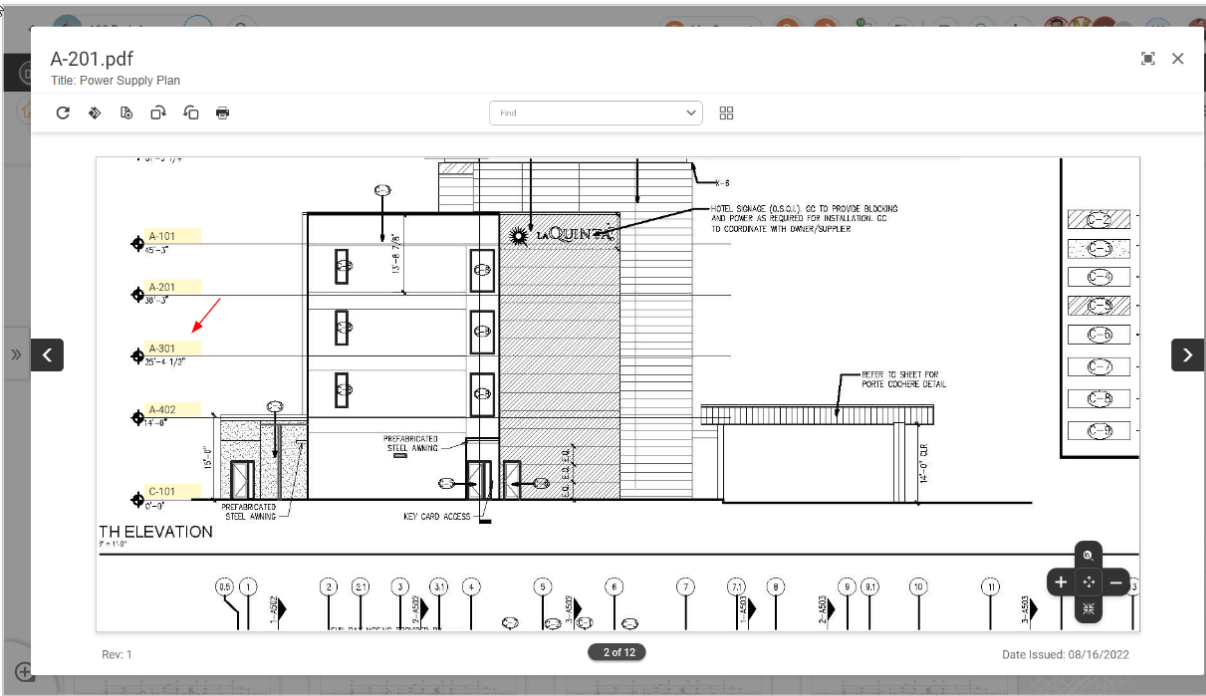

  • Clicking on any of the Hot Links within the Drawing, would open the respective file on the SAME Quick View Panel.
